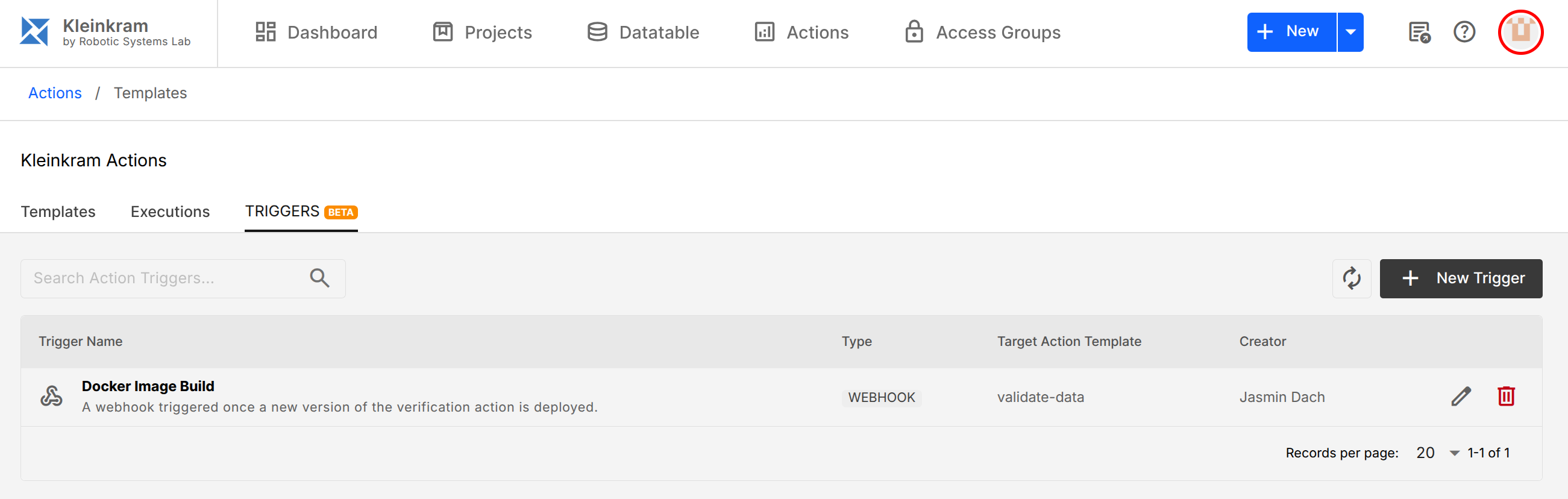

Action Triggers

Action triggers allow you to automate the execution of your actions based on specific events or schedules.

Kleinkram supports three types of triggers:

Trigger Type	Description	Example Use Case
Cron Triggers	Schedule-based	Generate a report with summary statistics daily at midnight.
Webhook Triggers	Event-based	Run a verification action as soon as a new docker image version is pushed
File Pattern Triggers	Data-based	Run a post-processing action as soon as a new file is uploaded

Cron Triggers

Cron triggers allow you to schedule actions to run periodically at fixed times or intervals. This is useful for regular maintenance tasks, nightly reports, or periodic data synchronization.

To set up a cron trigger:

1. Go to the Triggers tab.
2. Click Add Trigger and select Cron.
3. Enter a valid cron expression (e.g., 0 0 * * * for daily at midnight).

Cron Syntax

Kleinkram uses standard cron syntax. You can use sites like crontab.guru to help generate expressions.

Webhook Triggers

Webhook triggers allow external systems to trigger Kleinkram actions via HTTP requests. This enables integration with CI/CD pipelines, external data sources, or other tools in your ecosystem.

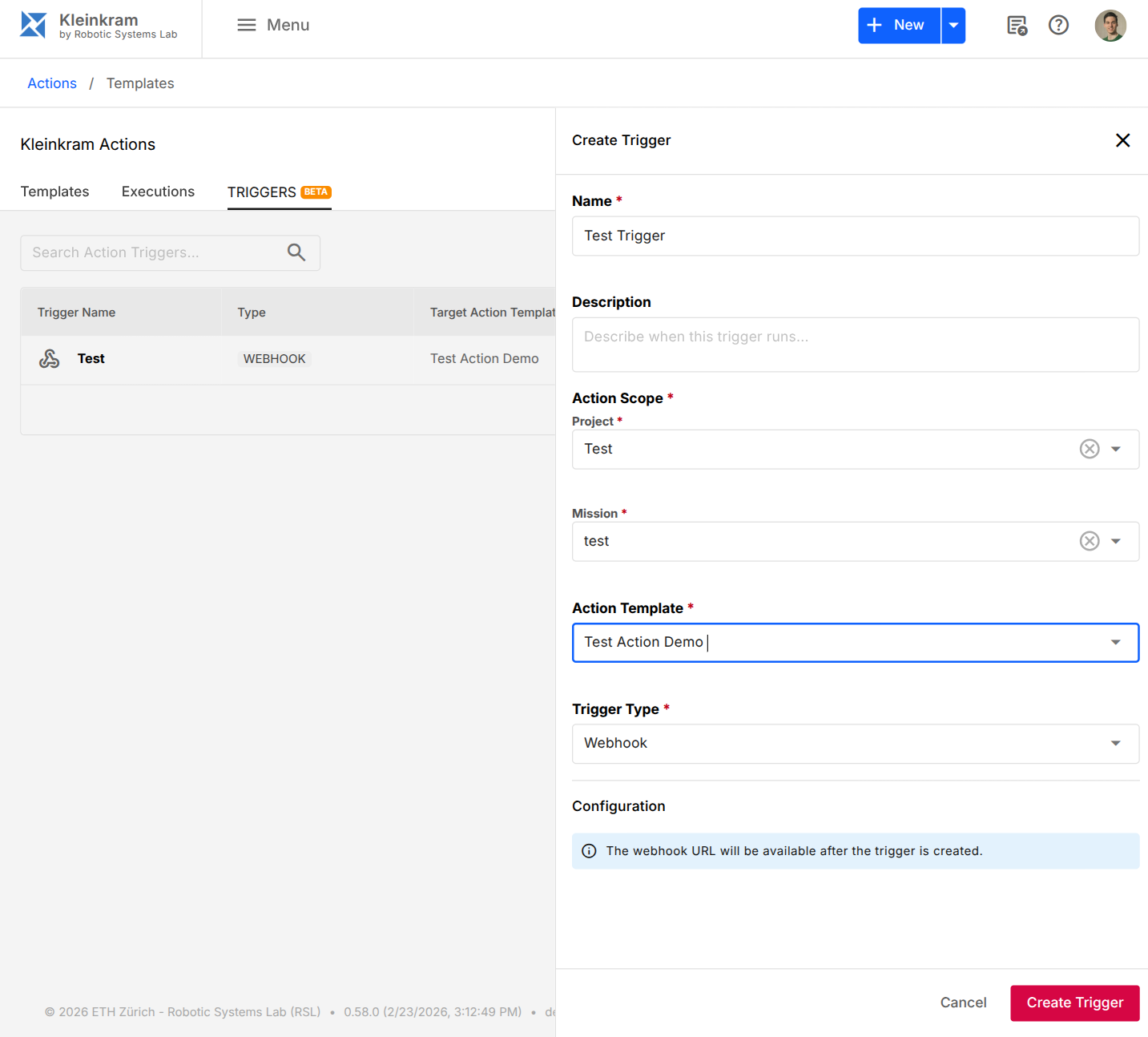

To set up a webhook trigger:

1. Go to the Triggers tab.
2. Click Add Trigger and select Webhook.
3. Kleinkram will generate a unique Webhook URL for this trigger.
4. You can now send a POST request to this URL to trigger the action.

Payload

You can pass data to the action by including a JSON body in your POST request. This data will be available to the action environment.

curl -X POST https://your-kleinkram-instance.com/api/v1/hooks/trigger/YOUR_WEBHOOK_ID

File Pattern Triggers

File pattern triggers allow you to automatically run an action when a file matching a specific pattern is uploaded or modified within a mission. This is perfect for processing pipelines, such as automatically converting new bag files or analyzing newly uploaded images.

To set up a file pattern trigger:

1. Go to the Triggers tab.
2. Click Add Trigger and select File Pattern.
3. Enter a glob pattern to match files (e.g., 2026-*-*_mission-*.mcap).
4. The action will now trigger automatically whenever a matching file is uploaded to any mission the action has access to.

TIP

You can use * to match any character sequence in a file name.
